Precision Micrometer Set with Interchangeable Anvils – 0-300mm/0-12″ Range | Carbide Measuring Faces & Ratchet Stop | Metric & Inch Sizes
- Professional micrometer set featuring interchangeable anvils for versatile measurements.
- Includes carbide measuring faces, fine cast frame construction, ratchet stop mechanism, and available in both metric (0-300mm) and inch (0-12″) sizes.
- Ideal for precision dimensional measurement applications.
Product Description:

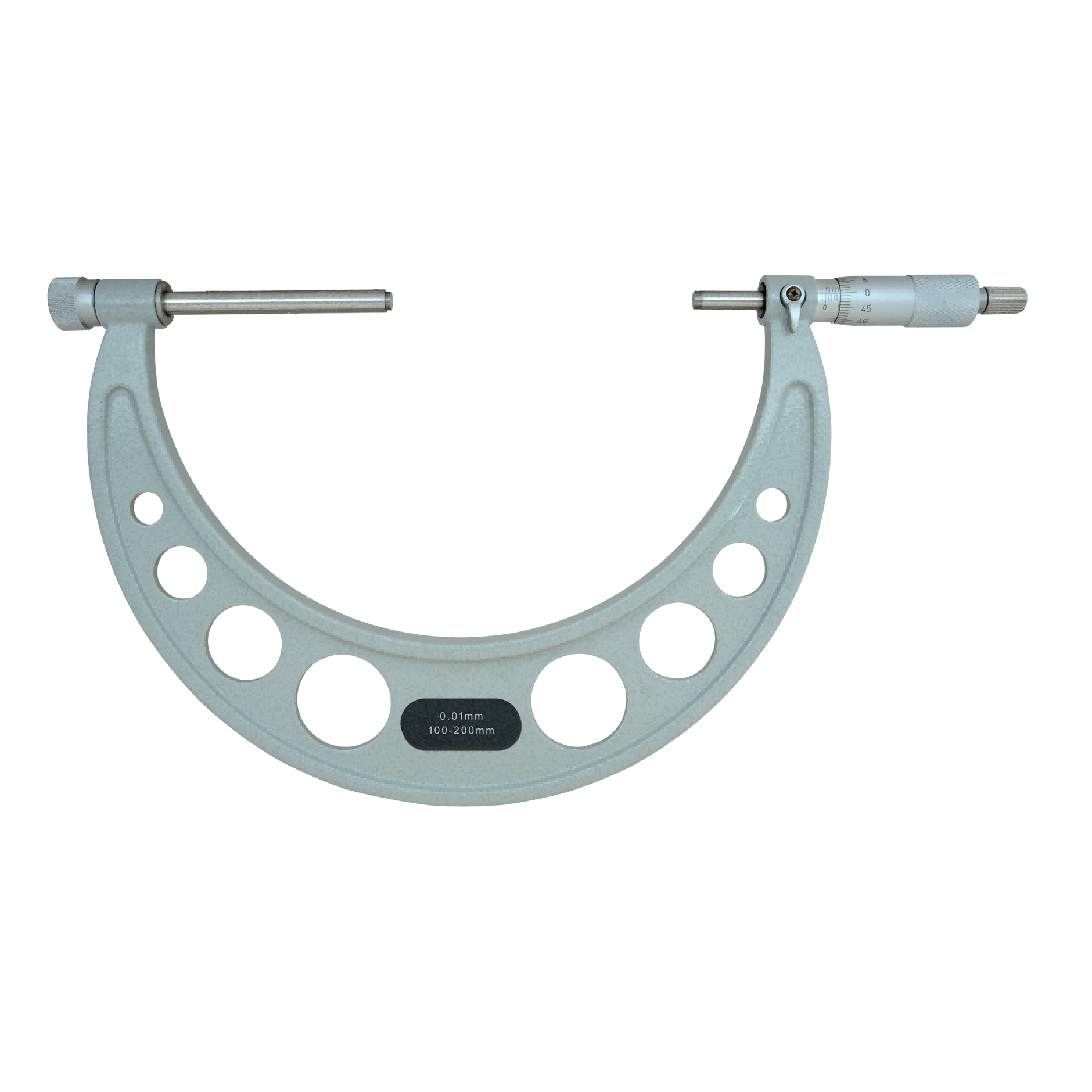

Precision Micrometer Set with Interchangeable Anvils
Discover unparalleled measurement versatility with our professional micrometer set featuring interchangeable anvils. Engineered for precision machining and quality control applications, these micrometers combine traditional craftsmanship with modern functionality. The carbide measuring faces ensure exceptional wear resistance, while the fine cast frame provides stability and durability. With both metric and inch versions available, this set offers complete flexibility for various measurement requirements.
Key Features
-
Interchangeable Anvils:Â Versatile measurement capabilities for different applications and surfaces
-
Carbide Measuring Faces:Â Hardened surfaces ensure long-term accuracy and wear resistance
-
Precision Ratchet Stop:Â Consistent measuring pressure and prevention of over-tightening
-
Fine Cast Frame:Â Durable construction with excellent stability and thermal properties
-
Dual Measurement Systems:Â Available in both metric (0-300mm) and imperial (0-12″) ranges
-
High Accuracy:Â Meets international precision standards for reliable measurements
-
Clear Readings:Â Sharp, easy-to-read scales on both sleeve and thimble
Technical Specifications
Metric Micrometers
| Order Number | Measurement Range | Resolution | Accuracy |
|---|---|---|---|
| H-362-50D | 0-50mm | 0.01mm | ±0.004mm |
| H-362-100DA | 50-100mm | 0.01mm | ±0.005mm |
| H-362-100DB | 0-100mm | 0.01mm | ±0.005mm |
| H-362-150D | 0-150mm | 0.01mm | ±0.006mm |
| H-362-200D | 100-200mm | 0.01mm | ±0.007mm |
| H-362-300D | 200-300mm | 0.01mm | ±0.009mm |
| H-362-300D | 150-300mm | 0.01mm | ±0.009mm |
Imperial Micrometers
| Order Number | Measurement Range | Resolution | Accuracy |
|---|---|---|---|
| H-362-2 | 0-2″ | 0.0001″ | ±0.00016″ |
| H-362-4A | 2-4″ | 0.0001″ | ±0.0002″ |
| H-362-4B | 0-4″ | 0.0001″ | ±0.0002″ |
| H-362-8 | 4-8″ | 0.0001″ | ±0.00028″ |
| H-362-8 | 0-6″ | 0.0001″ | ±0.00024″ |
| H-362-12 | 8-12″ | 0.0001″ | ±0.00035″ |
| H-362-12 | 6-12″ | 0.0001″ | ±0.00035″ |
Applications
-
Precision machining and manufacturing
-
Quality control and inspection departments
-
Tool and die making industries
-
Mechanical engineering and maintenance
-
Automotive and aerospace manufacturing
-
Research and development facilities
-
Educational institutions and training centers
Why Choose Our Interchangeable Anvil Micrometer Set?
Our micrometer set represents the perfect combination of traditional precision instrument quality and modern measurement versatility. The interchangeable anvil system allows for adaptation to various measurement scenarios, while the carbide measuring faces ensure exceptional durability and long-term accuracy. The fine cast frame provides excellent stability, and the ratchet stop mechanism guarantees consistent measuring pressure. With comprehensive range coverage in both metric and imperial systems, this set offers complete measurement solutions for professionals who demand accuracy and flexibility in their dimensional measurement applications.
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
