Product Description:

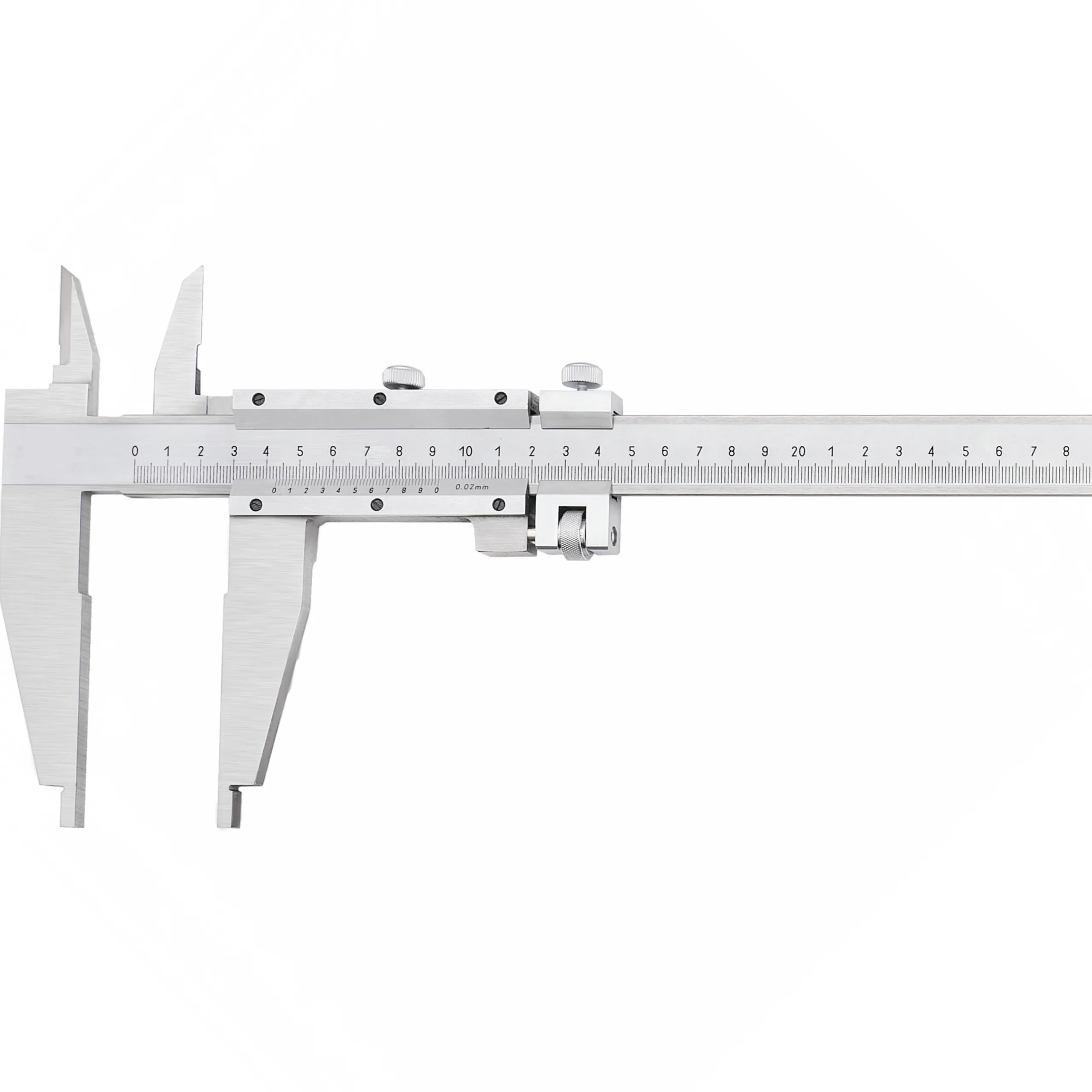

Heavy Duty Vernier Caliper – Professional Grade Precision Measurement Tool
Our heavy-duty vernier caliper is engineered for industrial applications requiring robust and precise measurement capabilities. Constructed from high-quality stainless steel, this caliper offers exceptional durability and corrosion resistance. With special long jaw design and the option for open block or mono block configurations, it provides versatile measurement solutions for outside dimensions (OD), inside dimensions (ID), step dimensions, and bore diameters. Available in ranges from 500mm to 3000mm, this professional tool is ideal for heavy machinery, large component manufacturing, and industrial maintenance applications.
📊 Technical Specifications:
Order Number | Measuring Range | Resolution | Normal Jaw | Long Jaw Options |
---|---|---|---|---|
H-152-550S | 0-500mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
100mm | 125/150/200mm |
H-152-555S | 0-600mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
100mm | 125/150/200mm |
H-152-560S | 0-800mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
125mm | 150/200mm |
H-152-565S | 0-1000mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
125mm | 150/200mm |
H-152-570S | 0-1500mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
200mm | 250/300mm |
H-152-575S | 0-2000mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
200mm | 250/300mm |
H-152-580S | 0-2500mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
300mm | 350/400mm |
H-152-585S | 0-3000mm | 0.05/0.02mm 0.05/1/128″ 0.02/0.001″ |
300mm | 350/400mm |
*Note: Resolution options include 0.05mm, 0.02mm, fractional inches (1/128″), and decimal inches (0.001″)*
⚙️ Key Features:
-
Heavy-Duty Construction: Stainless steel material for maximum durability
-
Versatile Measurement: Measures OD, ID, step dimensions, and bore diameters
-
Long Jaw Design: Special extended jaws for hard-to-reach measurements
-
Configuration Options: Choose between open block and mono block designs
-
Wide Measurement Range: Available from 500mm to 3000mm (20″ to 120″)
-
Multiple Resolution: 0.05mm, 0.02mm, and imperial unit options
-
Precision Ground: Accurate measuring surfaces for reliable results
-
Industrial Grade: Designed for harsh workshop environments
🛠️ Applications:
-
Heavy machinery manufacturing
-
Large component measurement
-
Industrial maintenance and repair
-
Metal fabrication and welding
-
Shipbuilding and marine industry
-
Construction equipment measurement
-
Aerospace and automotive large parts
-
Energy sector equipment maintenance
📐 Measurement Capabilities:
-
Outside Dimensions: Standard external measurement
-
Inside Dimensions: Internal diameter and space measurement
-
Step Measurement: Differential height and level measurement
-
Bore Diameter: Internal hole and cylinder measurement
-
Depth Measurement: Recess and cavity depth checking
🔧 Technical Features:
-
Material: High-grade stainless steel
-
Surface Treatment: Anti-corrosion coating
-
Scale Markings: Laser-etched for permanent readability
-
Slider Mechanism: Smooth operation with precise adjustment
-
Locking Screw: Secure measurement positioning
-
Jaw Design: Hardened measuring faces for wear resistance
-
Weight Distribution: Balanced design for comfortable handling
📦 Package Options:
Standard Configuration:
-
Vernier caliper main unit
-
Protective storage case
-
Calibration certificate
-
Operation manual
-
Cleaning cloth
Optional Accessories:
-
Additional long jaw sets
-
Specialized measuring attachments
-
Carrying cases
-
Maintenance kit
-
Custom calibration services
💡 Professional Advantages:
-
Large Capacity: Handles measurements up to 3000mm
-
Flexible Configuration: Adaptable to various measurement scenarios
-
Durable Construction: Withstands industrial environments
-
Precision Accuracy: Reliable measurements for quality control
-
Time-Saving: Multiple measurement functions in one tool
-
Cost-Effective: Reduces need for multiple specialized tools
🌟 Quality Assurance:
-
Manufactured under ISO quality standards
-
Individual calibration verification
-
Material certification available
-
Traceable measurement standards
-
Comprehensive warranty coverage
-
Technical support available
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
