Product Description:

Complete Digital Three-Point Internal Micrometer Set (2-300mm) – Professional Measurement Solution

Our comprehensive digital three-point internal micrometer set provides complete coverage for precision bore measurements from 2mm to 300mm. Featuring IP54 protection, carbide measuring faces, and advanced digital capabilities with RS232C and optional wireless data output, this professional set is designed for modern manufacturing environments. The self-centering three-point design ensures accurate measurements of both blind and through holes, while the included calibration rings guarantee measurement integrity.

📊 Digital System Features:

• Smart Power Management: Automatic shut-off with CR2032 battery operation

• Flexible Measurement: Absolute/relative measurement modes

• Dual Unit System: Metric/imperial unit conversion

• Data Connectivity: RS232C output (P1505 cable) with optional wireless transmission (P1805)

• IP54 Rating: Protected against dust and water splashes

• User-Friendly Interface: Initial value setting and clear digital display

📋 Individual Micrometer Specifications:

Coated Finish Models (50-300mm):

📋 Complete Set Specifications:

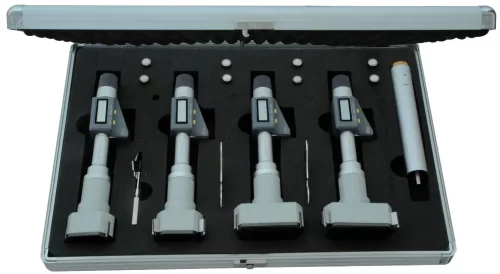

Chrome Plated Sets:

Coated Finish Set:

⚙️ Professional Features:

• Complete Range Coverage: 2-300mm measurement capability

• Digital Precision: 0.005mm accuracy with digital readout

• IP54 Protection: Suitable for industrial environments

• Advanced Data Output: RS232C and wireless options

• Carbide Measurement Faces: Wear-resistant for long-term accuracy

• Self-Centering Design: Three-point automatic alignment

• Comprehensive Sets: Include all necessary calibration rings

🛠️ Applications:

• Precision machining and manufacturing

• Quality control and inspection systems

• Automotive and aerospace industries

• Research and development laboratories

• Industrial maintenance and repair

• Statistical process control applications

📦 Package Includes:

• Three-point internal micrometer heads

• Matched calibration rings

• Extension rods

• Protective storage cases

• Calibration certificates

• CR2032 batteries

• Operation manuals

Optional Accessories:

• P1505 RS232C data cable

• P1805 wireless transmission module

• Additional extension rods

• Custom calibration rings

🔧 Technical Support:

Our professional support team provides:

• Measurement application guidance

• Data system integration support

• Calibration and maintenance services

• Custom configuration solutions

[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
