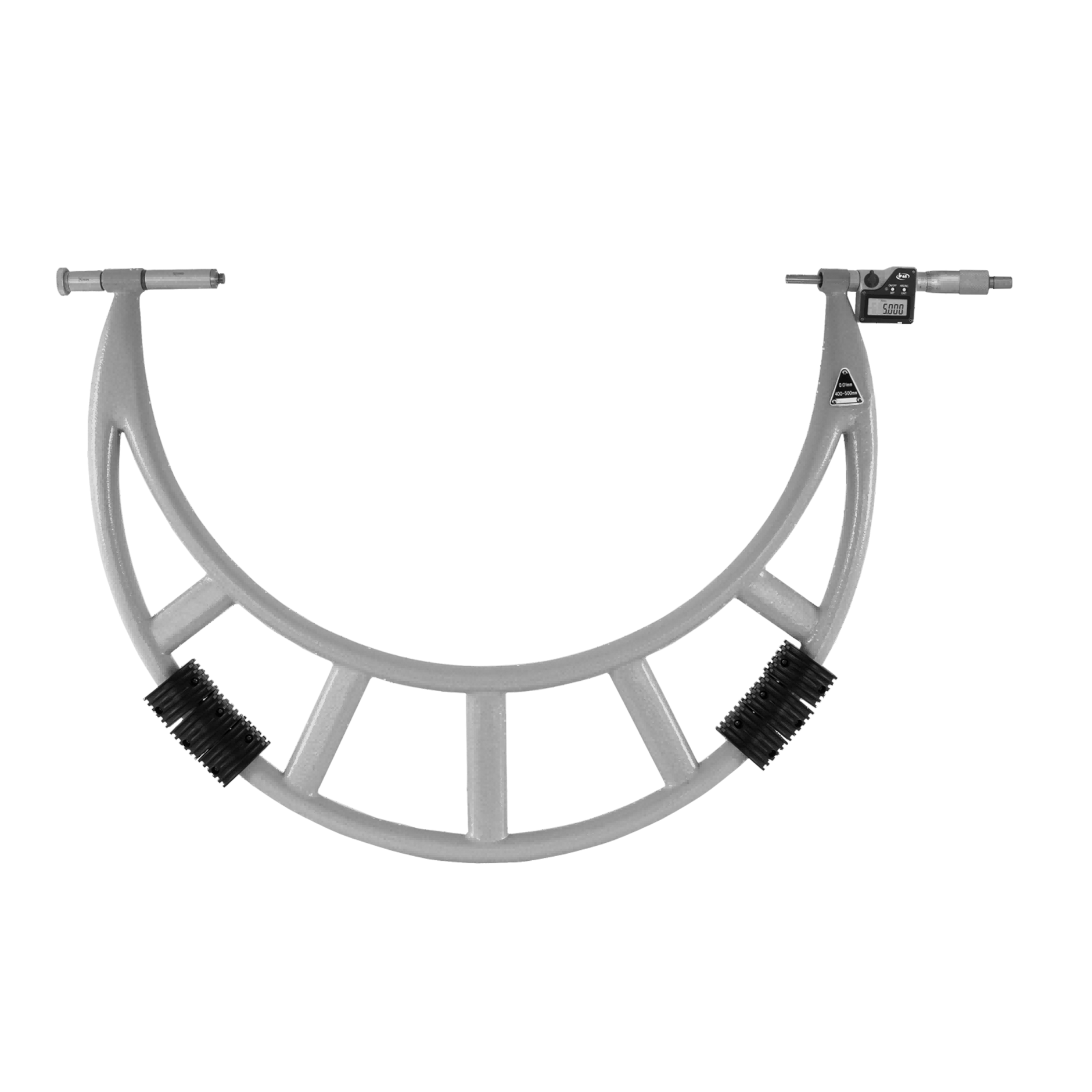

Digital Micrometer with Adjustable Anvil – IP65 Protected Large Range Micrometer (300-1000mm) with Tungsten Carbide Faces
- Digital adjustable anvil micrometer with extended measuring range up to 1000mm.
- Features IP65 protection, tungsten carbide measuring faces, and maintains accuracy without zero readjustment after setting.
- Ideal for large component measurements.
Product Description:
Digital Adjustable Anvil Micrometer – Large Range Measurement with IP65 Protection
Engineered for precision measurement of large components, our digital adjustable anvil micrometer eliminates the need for zero readjustment after setting, significantly improving work efficiency. With an impressive measuring range up to 1000mm, IP65 protection against dust and water, and tungsten carbide measuring faces, this micrometer delivers exceptional accuracy and durability in industrial environments. The lightweight yet rigid construction ensures comfortable handling during extended use.
📊 Technical Specifications:
| Model Number | Measuring Range | Accuracy | Dimension A | Dimension L |
|---|---|---|---|---|
| H-104-13-550 | 300-400mm | 0.011mm | 224mm | 414mm |
| H-104-14-550 | 400-500mm | 0.013mm | 275mm | 514mm |
| H-104-15-550 | 500-600mm | 0.015mm | 325mm | 614mm |
| H-104-16-550 | 600-700mm | 0.016mm | 375mm | 714mm |
| H-104-17-550 | 700-800mm | 0.018mm | 430mm | 814mm |
| H-104-18-550 | 800-900mm | 0.020mm | 480mm | 914mm |
| H-104-19-550 | 900-1000mm | 0.020mm | 530mm | 1014mm |
⚙️ Key Features:
-
Adjustable Anvil Design: Standard sets available (25mm, 50mm) for measurements up to 1000mm without zero readjustment
-
IP65 Protection: Complete protection against dust and water jets, suitable for harsh workshop environments
-
Tungsten Carbide Measuring Faces: Exceptional wear resistance and long-term measurement stability
-
High Precision Accuracy: Maintains precision up to 0.011mm across all measuring ranges
-
Lightweight & Rigid Construction: Optimized balance between weight and structural integrity
-
Digital Display: Clear readout with resolution of 0.001mm/0.00005″
-
Extended Measurement Range: Covers 300-1000mm for large component measurement
🛠️ Applications:
-
Large machinery manufacturing and maintenance
-
Automotive and aerospace component inspection
-
Metal fabrication and welding verification
-
Mold and die manufacturing
-
Quality control of large-scale production parts
📦 Each micrometer comes with protective case and calibration certificate. Standard sets (25mm, 50mm) available for different measurement requirements.
Contact us for volume pricing and custom measurement solutions!
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
