Precision Measurement-Digital Leverage Micrometer with Data Output
- IP54-rated digital leverage micrometer with 0.0001mm resolution and wireless data output.
- Features include unit conversion, tolerance alerts, and multiple measurement modes.
- Ideal for high-precision industrial applications.
Product Description:
Digital Leverage Micrometer – High-Precision Measurement with Advanced Data Connectivity
Our digital leverage micrometer combines exceptional precision with modern connectivity features, offering resolutions up to 0.0001mm and IP54 protection for reliable performance in demanding environments. With wireless data output, multiple measurement modes, and intuitive controls, this micrometer is designed for professionals in quality control, manufacturing, and precision engineering. Available in multiple versions to suit different needs, from basic measurement to advanced data integration.
📊 Technical Specifications:
LCD display style
Measurement Parameters:
| Model Number | Range | Resolution | Data Output |
|---|---|---|---|
| Basic Version (No Data Output): | |||
| H-270-81-000/001 | 0-25mm/0-1″ | 0.0005mm | No |
| H-270-82-000/001 | 25-50mm/1-2″ | 0.0005mm | No |
| H-270-83-000/001 | 50-75mm/2-3″ | 0.0005mm | No |
| H-270-84-000/001 | 75-100mm/3-4″ | 0.0005mm | No |
| Standard Version (No Data Output): | |||
| H-270-81-100/101 | 0-25mm/0-1″ | 0.0002mm | No |
| H-270-82-100/101 | 25-50mm/1-2″ | 0.0002mm | No |
| H-270-83-100/101 | 50-75mm/2-3″ | 0.0002mm | No |
| H-270-84-100/101 | 75-100mm/3-4″ | 0.0002mm | No |
| Standard Version (With Data Output): | |||
| H-270-81-200/201 | 0-25mm/0-1″ | 0.0002mm | Yes |
| H-270-82-200/201 | 25-50mm/1-2″ | 0.0002mm | Yes |
| H-270-83-200/201 | 50-75mm/2-3″ | 0.0002mm | Yes |
| H-270-84-200/201 | 75-100mm/3-4″ | 0.0002mm | Yes |
| Premium Version (With Data Output): | |||
| H-270-81-400/401 | 0-25mm/0-1″ | 0.0001mm | Yes |
| H-270-82-400/401 | 25-50mm/1-2″ | 0.0001mm | Yes |
| H-270-83-400/401 | 50-75mm/2-3″ | 0.0001mm | Yes |
| H-270-84-400/401 | 75-100mm/3-4″ | 0.0001mm | Yes |

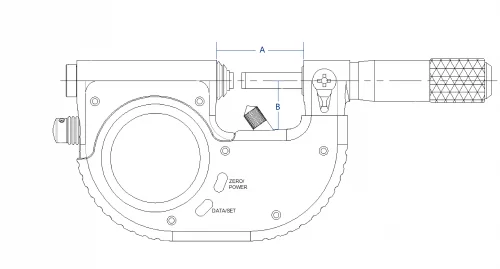

Size chart
Main Dimensions:
| Range | Dimension A | Dimension B |
|---|---|---|
| 0-25mm | 36mm | 19.0mm |
| 25-50mm | 62mm | 35.0mm |
| 50-75mm | 87mm | 47.5mm |
| 75-100mm | 112mm | 60.0mm |
⚙️ Key Features:
-
High Resolution: Up to 0.0001mm for ultra-precise measurements
-
IP54 Protection: Dust and water resistance for harsh environments
-
Wireless Data Output: Seamless connectivity for data recording and analysis
-
Multiple Measurement Modes: Includes ABS/INC, Max/Min, and tolerance settings
-
Unit Conversion: Switch between metric (mm) and imperial (inch) units
-
Tolerance Alerts: Visual and audible warnings for out-of-spec measurements
-
Ergonomic Design: Comfortable grip with intuitive button layout
-
Long Battery Life: Efficient power management for extended use
🔧 Advanced Functions:
-
ZERO/POWER Button: Short press for zeroing, long press for on/off
-
DATASET Button: Short press for data send, long press for settings (unit conversion, tolerance alerts, display options, wireless settings)
-
Absolute Measurement: Instant readings without manual zeroing
-
Data Connectivity: Wireless and wired options for integration with SPC systems
-
Customizable Display: Adjustable interface for user preferences
🛠️ Applications:
-
Quality control and inspection
-
Precision machining and manufacturing
-
Automotive and aerospace industries
-
Research and development laboratories
-
Mechanical engineering and metrology
📦 Package Includes:
-
Digital leverage micrometer unit
-
Calibration certificate
-
Protective case
-
User manual
-
Data cable (for models with data output)
-
Wireless receiver (if applicable)
💡 Why Choose Our Digital Leverage Micrometer?
-
Superior Accuracy: Resolutions from 0.0005mm to 0.0001mm meet the highest standards
-
Robust Construction: IP54 rating ensures durability in tough conditions
-
Smart Connectivity: Wireless data transfer enhances productivity
-
User-Friendly: Intuitive controls and clear display simplify operation
-
Versatile: Multiple versions available to match specific requirements
For detailed specifications, custom solutions, or bulk pricing, contact us today!
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
