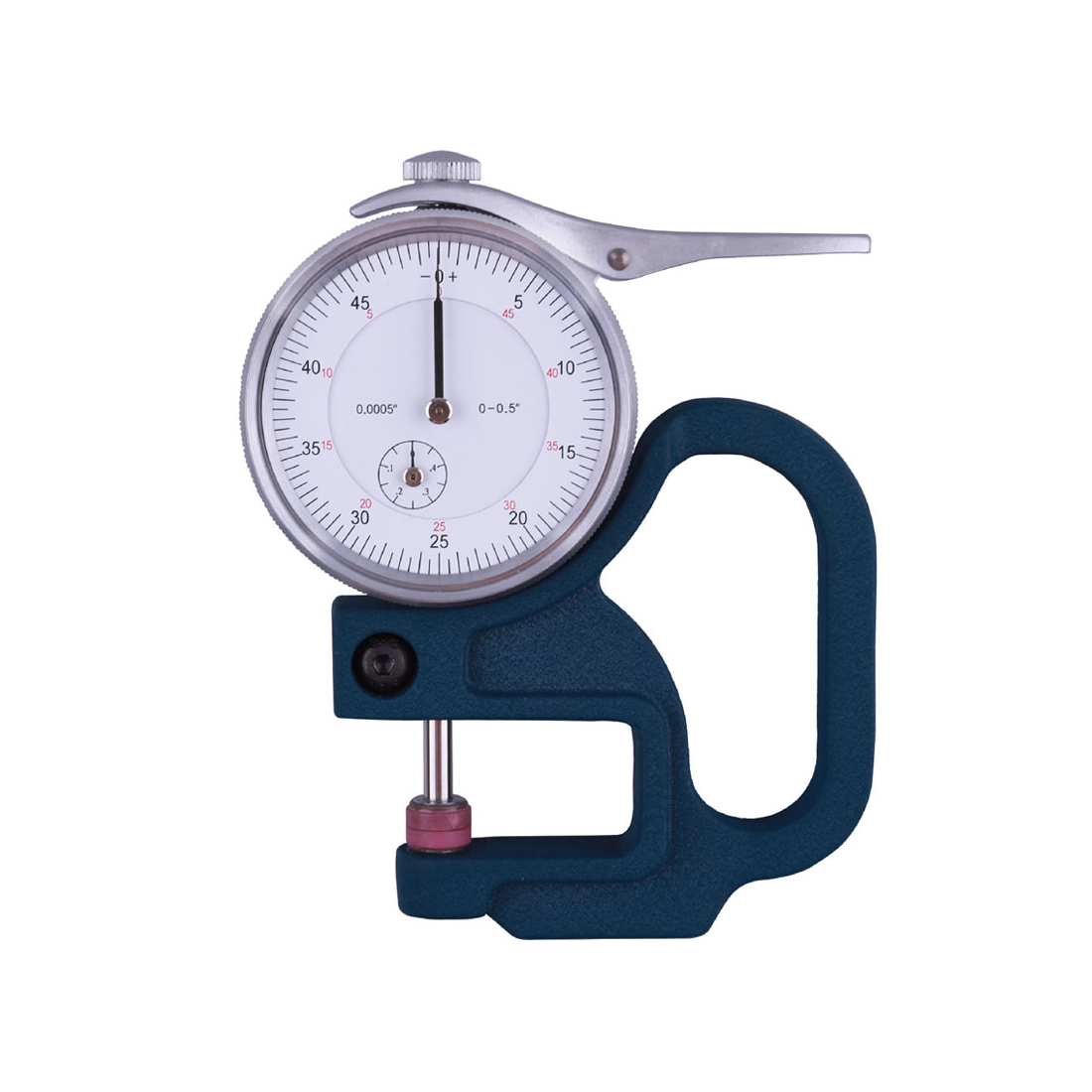

Precision Handheld Dial Thickness Gauge 0-10mm / 0.5″ – 0.01mm Resolution with Ceramic Measuring Tips
- Professional handheld dial thickness gauge with 0-10mm (0-0.5″) range and 0.01mm/0.001″ high precision.
- Features wear-resistant flat ceramic measuring tips (10mm diameter), large 58mm easy-read bezel, and 30mm measuring depth.
- Ideal for quality control and material thickness verification.
Product Description:
Precision Handheld Dial Thickness Gauge
Engineered for professional thickness measurement applications, our handheld dial thickness gauge delivers exceptional accuracy with 0.01mm resolution. The wear-resistant ceramic measuring tips ensure long-term precision and prevent surface damage, while the large 58mm dial face provides clear, easy reading. Perfect for quality control, manufacturing, and material inspection applications.
Key Features
-
High Precision Measurement:Â 0.01mm (0.001″ for imperial model) resolution for accurate thickness verification
-
Ceramic Measuring Tips:Â 10mm diameter flat ceramic tips resist wear and prevent sample damage
-
Large Clear Dial:Â 58mm diameter bezel with easy-to-read markings and smooth pointer movement
-
Handheld Design:Â Portable and easy to use for both laboratory and production floor applications
-
Dual Range Options:Â Available in metric (0-10mm) and imperial (0-0.5″) versions
-
30mm Measuring Depth:Â Suitable for various material thickness applications
Technical Specifications
| Model Number | Measurement Range | Resolution | Special Features |
|---|---|---|---|
| H-531-10 | 0-10mm | 0.01mm | Ceramic Tips, Handheld |
| H-531-0.5 | 0-0.5″ | 0.001″ | Ceramic Tips, Handheld |
Both models feature 10mm ceramic tips, 58mm bezel, and 30mm measuring depth
Applications
-
Quality control thickness inspection
-
Material thickness verification in manufacturing
-
Paper, plastic, and metal sheet measurement
-
Automotive and aerospace component inspection
-
Production line quality checking
-
Research and development measurements
-
Maintenance and repair thickness assessment
Why Choose Our Handheld Thickness Gauge?
This precision thickness gauge combines laboratory-grade accuracy with practical handheld convenience. The ceramic measuring tips maintain their precision over time and won’t damage delicate surfaces. The large, clear dial makes readings quick and accurate, reducing operator fatigue. Whether you choose the metric or imperial version, this gauge provides reliable thickness measurements for a wide range of industrial and manufacturing applications.
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
