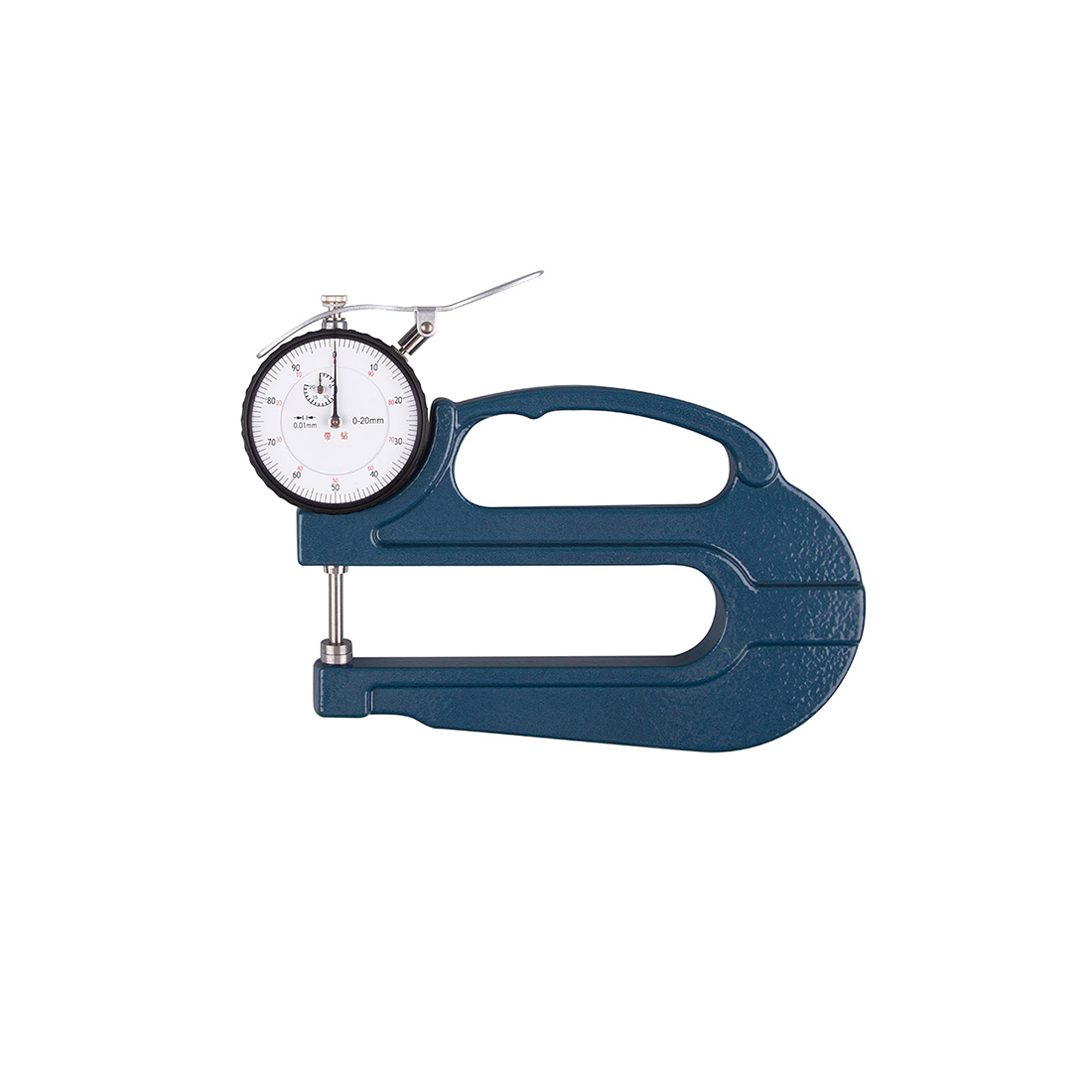

Precision Dial Thickness Gauge – 0-20mm Range with Ceramic Tips | 0.01mm Resolution & 120mm Depth Capacity
- Professional dial thickness gauge featuring wear-resistant flat ceramic measuring tips,Flat creamic measuring tips diameter 10mm
- Provides precise 0.01mm resolution measurements with 120mm depth capacity and clear 58mm bezel.
- Available in multiple ranges (0-10mm, 0-20mm, 0-0.5″) for various material thickness applications.
Product Description:
Professional Dial Thickness Gauge with Ceramic Measuring Tips
Achieve exceptional accuracy in thickness measurements with our precision dial thickness gauge. Designed for quality control professionals and manufacturing engineers, this instrument features wear-resistant ceramic measuring tips that ensure long-term accuracy and prevent surface damage. The large 58mm dial face provides clear readings, while the 120mm depth capacity allows measurements in hard-to-reach areas.
Key Features
-
Wear-Resistant Ceramic Tips:Â 10mm diameter flat measuring surfaces prevent corrosion and wear
-
High Precision Measurement:Â 0.01mm resolution (0.001″ for imperial models) for accurate readings
-
Extended Depth Capacity:Â 120mm measuring depth for hard-to-reach applications
-
Large Clear Dial:Â 58mm diameter bezel with easy-to-read markings
-
Multiple Range Options:Â Available in 0-10mm, 0-20mm, and 0-0.5″ configurations
-
Durable Construction:Â Built for reliable performance in industrial environments
Technical Specifications
| Model Number | Measurement Range | Resolution | Special Features |
|---|---|---|---|
| H-530-10 | 0-10mm | 0.01mm | Ceramic Tips |
| H-530-20 | 0-20mm | 0.01mm | Ceramic Tips |
| H-530-0.5 | 0-0.5″ | 0.001″ | Ceramic Tips |
All models feature 10mm ceramic tips, 58mm bezel, and 120mm measuring depth
Applications
-
Material thickness verification in manufacturing
-
Quality control and inspection processes
-
Sheet metal and plastic thickness measurement
-
Automotive and aerospace component inspection
-
Paper and packaging industry thickness testing
-
Research and development applications
-
Maintenance and repair thickness checks
Why Choose Our Dial Thickness Gauge?
Our thickness gauge stands out with its ceramic measuring tips that resist wear and prevent damage to sensitive surfaces. The combination of 0.01mm precision, 120mm depth capability, and clear 58mm dial makes this instrument ideal for both routine quality checks and precise engineering measurements. Whether you’re working in metric or imperial units, this gauge provides reliable, accurate thickness measurements for a wide range of materials and applications.
