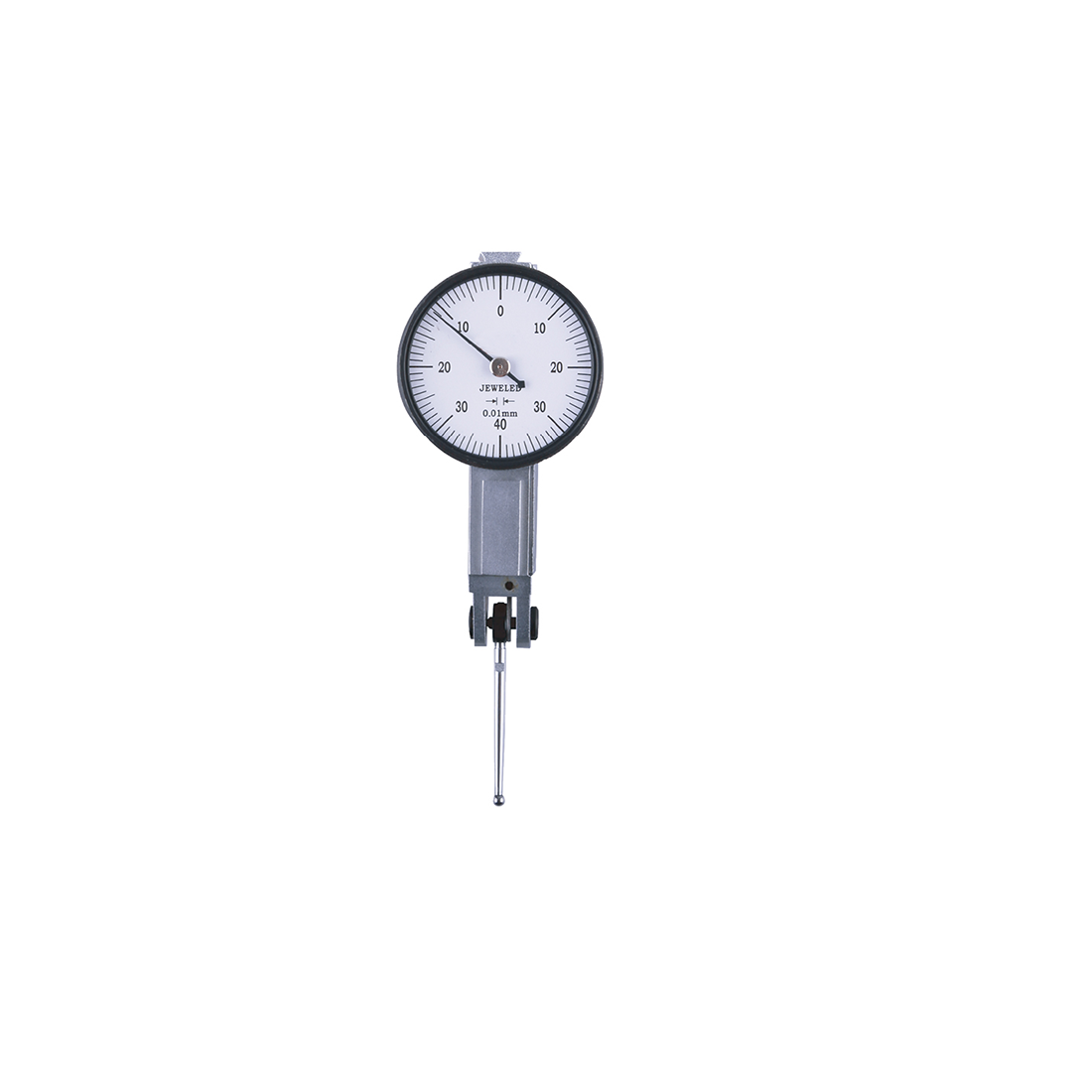

Precision Dial Test Indicator with Long Probe – Jeweled Movement, Interchangeable Carbide Tip (0.8mm/0.03″ Range)

  • Jeweled bearing movement ensures accuracy and shock-proof durability.
  • Professional dial test indicator featuring a 16.5mm/0.62“  long probe with interchangeable carbide tip (2mm diameter).
  • Includes both metric (6mm/8mm) and imperial (5/32″/3/8″) mounting stems for versatile compatibility. Ideal for precision measurements in tight spaces.

Product Description:

Precision Long Probe Dial Test Indicator

Engineered for exceptional accuracy in confined spaces, our professional dial test indicator features an extended 16.5mm (0.62″) probe with interchangeable carbide contact point. The jeweled bearing movement provides smooth operation and long-term reliability, while the shock-proof construction protects against impacts. With multiple mounting stem options included, this indicator offers unparalleled versatility for precision measurement applications.


Key Features

  • Extended Reach Probe: 16.5mm length with 2mm diameter carbide tip for measurements in deep recesses

  • Jeweled Movement: Ensures precise, friction-free operation and extended service life

  • Shock-Proof Design: Built-in protection against accidental impacts and vibrations

  • Universal Mounting: Includes both metric (6mm & 8mm) and imperial (5/32″ & 3/8″) holding stems

  • Interchangeable Tips: Carbide contact point provides wear resistance and durability

  • Dual Measurement: Available in metric (0.8mm) and imperial (0.03″) ranges


Technical Specifications

Model No. Measuring Range Resolution Bezel Diameter
H-412-0.8A 0-0.8mm 0.01mm 30mm
H-412-0.8B 0-0.8mm 0.01mm 37.5mm
H-412-0.03A 0-0.03″ 0.0005″ 1.18″
H-412-0.03B 0-0.03″ 0.0005″ 1.48″

All models feature jeweled bearings, shock-proof mechanism, and interchangeable carbide tips


Applications

  • Precision machining in deep recesses and confined spaces

  • Mold and die making applications

  • Complex fixture measurements

  • Quality control inspection of deep bore holes

  • Automotive and aerospace manufacturing

  • Tool room and maintenance applications

  • Research and development measurements


Why Choose Our Long Probe Test Indicator?

This specialized dial test indicator combines extended reach capability with professional-grade precision. The long probe design allows access to deep grooves and recessed areas where standard indicators cannot reach. The jeweled movement ensures consistent accuracy, while the included metric and imperial mounting stems make it compatible with virtually any measurement setup. Perfect for applications requiring both precision and accessibility.

[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
