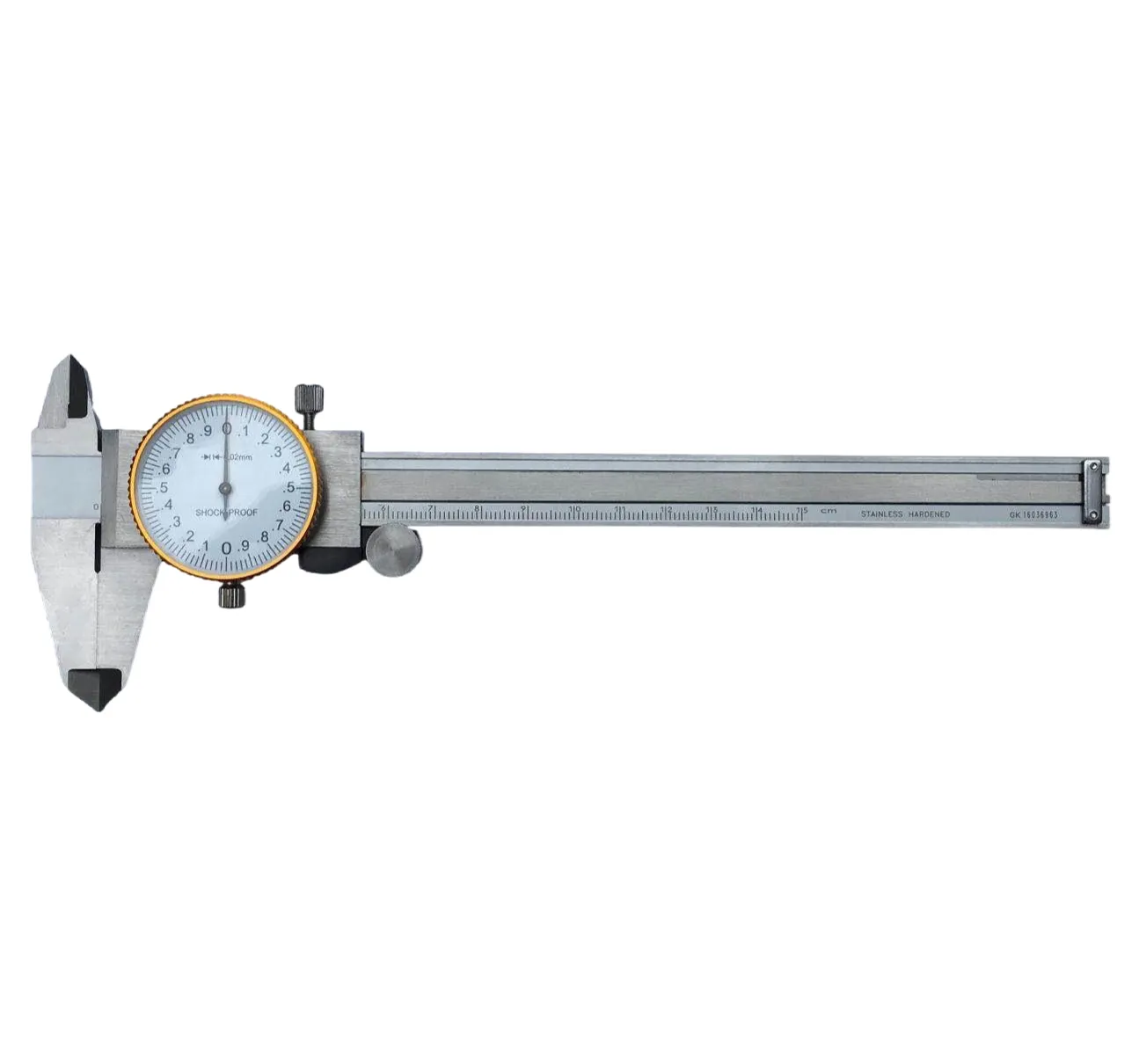

Dial Caliper with Double-way Shock-proof 0-300mm – 0.01mm High Accuracy

  • Can be Ti-tanized on the side
  • Precision dial caliper featuring double-way shockproof protection, a smooth thumb roller, and secure locking clamp.
  • Optional titanium coating on the side rail enhances wear resistance and ensures smooth operation for long-term measurement stability.
Tags: Category:
Brand: , ,

Parameter:

Order No. Measuring range Resolution Accuracy
H-101-152 0-150mm 0.02mm +/-0.02mm
H-101-202 0-200mm 0.02mm +/-0.03mm
H-101-302 0-300mm 0.02mm +/-0.04mm
H-101-151 0-150mm 0.01mm +/-0.02mm
H-101-201 0-200mm 0.01mm +/-0.03mm
H-101-301 0-300mm 0.01mm +/-0.04mm



Shock-Proof Digital Caliper with Dual-Way Protection System

Engineered for demanding workshop environments, our H-101 series Digital Calipers feature an innovative dual-way shock-proof system that protects the precision measurement system from accidental impacts and drops. With excellent IP54 splash-proof and dust-proof protection, these calipers maintain reliable performance even in challenging conditions.

The large   display ensures clear readings, while the automatic ON/OFF function extends battery life. Choose between 0.01mm or 0.02mm resolution models to meet your specific precision requirements, all featuring carbide-tipped measuring faces for extended wear resistance.

Key Features & Benefits:

  • Dual-Way Shock Protection: Special damping system absorbs impacts from all directions

  • High Precision Measurement: 0.01mm resolution models available for ultra-precise work

  • Wide Measuring Range: 150mm, 200mm, and 300mm versions available

  • IP54 Protection: Resists coolants, oils, and workshop debris

  • Carbide Measuring Faces: Hardened tips ensure long-term accuracy and wear resistance

  • Auto Power Management: Automatic shutdown conserves battery life

Technical Specifications:

  • Models:

    • H-101-151: 0-150mm / 0.01mm / ±0.02mm

    • H-101-152: 0-150mm / 0.02mm / ±0.02mm

    • H-101-201: 0-200mm / 0.01mm / ±0.03mm

    • H-101-202: 0-200mm / 0.02mm / ±0.03mm

    • H-101-301: 0-300mm / 0.01mm / ±0.04mm

    • H-101-302: 0-300mm / 0.02mm / ±0.04mm

  • Display: Large LCD with absolute/incremental measurement

  • Protection Rating: IP54 against dust and moisture

  • Battery: SR44 (approx. 1.5 years life with auto shut-off)

Ideal Applications:

  • CNC machining centers

  • Metal fabrication shops

  • Quality control laboratories

  • Maintenance and repair facilities

  • Educational and training institutions

Ordering Information:
Select the model that matches your required measuring range and precision level. All calipers include protective case, battery, and calibration certificate. Contact us for volume pricing and custom configurations.

[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
