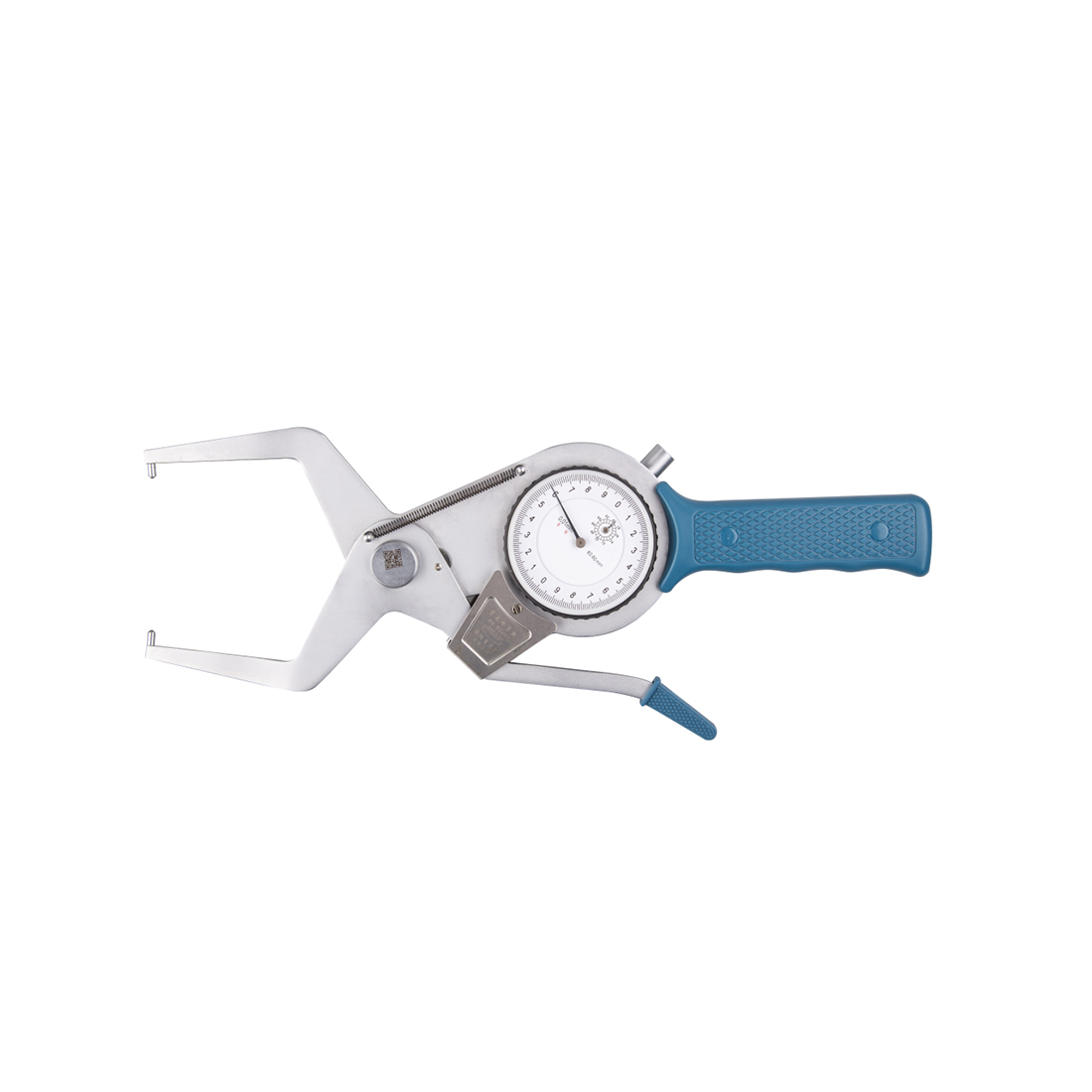

Precision Dial Outside Caliper Gauge – 0-100mm Range with Shockproof Indicator | Customizable Over 395mm
- Professional dial outside caliper gauge for accurate external measurements (0-100mm standard range).
- Features shockproof dial indicator with 0.01mm ,Caliper gauge for outside measurement with a measuring range greater than 95mm come with a shockproof dial indicator.
- Caliper gauge for outside measurement with a measuring range greater than 95mm come with a shockproof dial indicator.
- Ideal for machining, quality control, and manufacturing applications requiring precise external dimension verification.
Product Description:
Professional Dial Outside Caliper Gauge
Experience exceptional accuracy in external dimensional measurements with our precision dial outside caliper gauge. Engineered for machinists, quality control professionals, and manufacturing engineers, this instrument delivers reliable 0.01mm resolution measurements with a shockproof dial indicator built to withstand rigorous industrial environments. Customizable solutions available for specialized applications requiring measurements beyond 395mm.
Key Features
-
Comprehensive Measurement Range:Â Standard models cover 0-100mm with custom options beyond 395mm
-
High Precision Accuracy:Â 0.01mm resolution for exact measurements
-
Shockproof Construction:Â Protected dial indicator ensures durability in industrial settings
-
Optimized Contact Points: 6×3mm carbide tips for consistent performance
-
Customizable Solutions:Â Tailored configurations for specific measurement requirements
-
Ergonomic Design:Â Balanced arm lengths for comfortable operation
Technical Specifications
| Model Number | Measurement Range | Resolution | Contact Point | Arm Length |
|---|---|---|---|---|
| H-530-20 | 0-20mm | 0.01mm | 6×3mm | 60mm |
| H-530-40 | 20-40mm | 0.01mm | 6×3mm | 60mm |
| H-530-60 | 40-60mm | 0.01mm | 6×3mm | 55mm |
| H-530-80 | 60-80mm | 0.01mm | 6×3mm | 55mm |
| H-530-100 | 80-100mm | 0.01mm | 6×3mm | 55mm |
Custom configurations available for ranges exceeding 395mm
Applications
-
External diameter measurement of shafts and cylinders
-
Precision machining and toolroom applications
-
Quality assurance and inspection processes
-
Manufacturing and production line measurements
-
Automotive and aerospace component verification
-
Maintenance and repair operations
-
Research and development precision measurements
Why Choose Our Outside Caliper Gauge?
Our dial outside caliper gauge combines precision engineering with practical functionality for external measurements. The shockproof indicator ensures reliable performance in demanding environments, while the customizable options make it suitable for both standard and specialized applications. With optimized arm lengths and consistent contact points, this instrument offers exceptional accuracy and ease of use for all your external measurement requirements.
[Request Catalog] for complete size specifications or [Contact Us] for custom set configurations and volume pricing.
