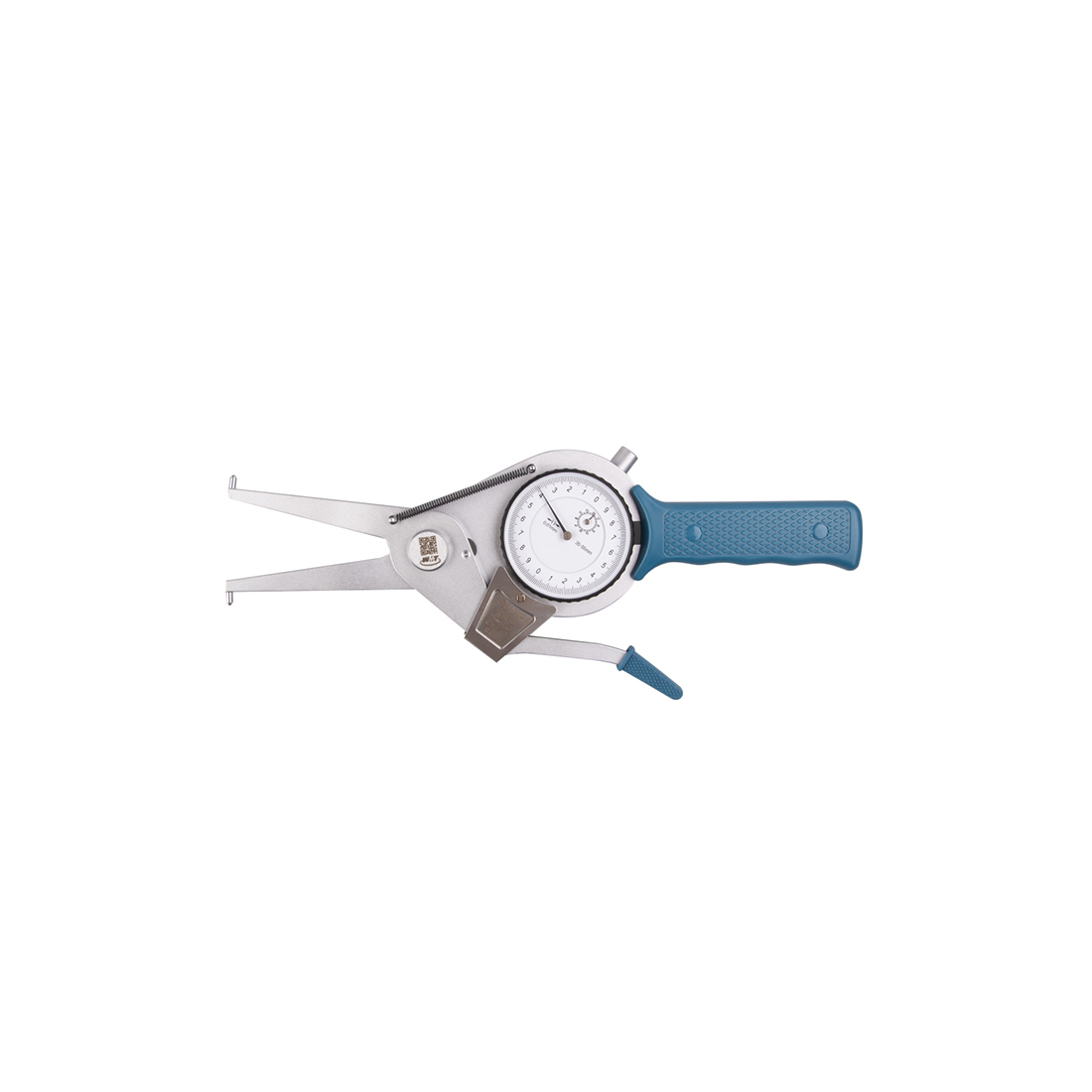

Caliper Gauge for Inside Measurement
- Calipers Gauge with a measuring range greater than 395mm can be custom-made to meet customer requirements.
- Caliper gauge for inside measurement with a measuring range greater than 95mm come with a shockproof dial indicator.
Parameter:
| Model No. | Range | Reading | Contact point | Arm length |
| H-529-35 | 15-35mm | 0.01mm | 3x3mm | 50mm |
| H-529-55 | 35-55mm | 0.01mm | 6x3mm | 80mm |
| H-529-75 | 55-75mm | 0.01mm | 8x3mm | 90mm |
| H-529-95 | 75-95mm | 0.01mm | 8x3mm | 100mm |
| H-529-115 | 95-115mm | 0.01mm | 10×3.2mm | 150mm |
| H-529-135 | 115-135mm | 0.01mm | 10×3.2mm | 150mm |
